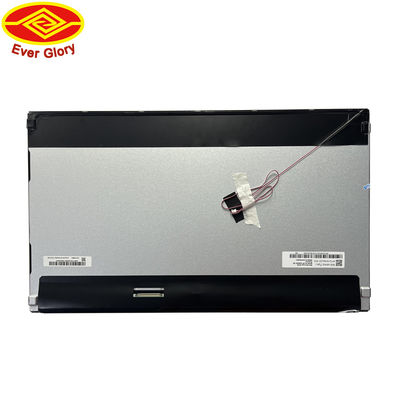

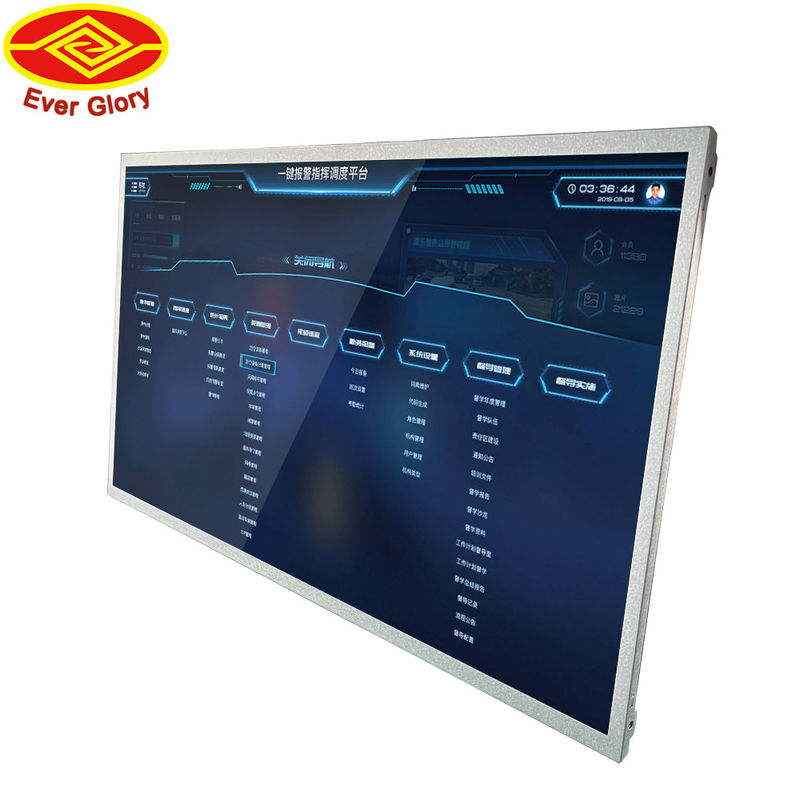

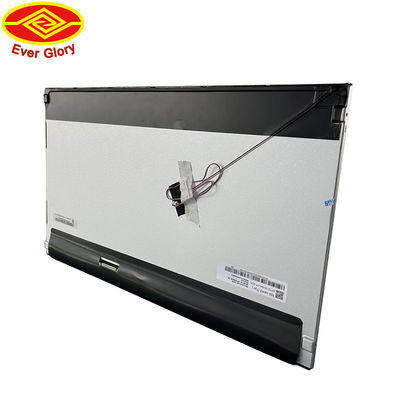

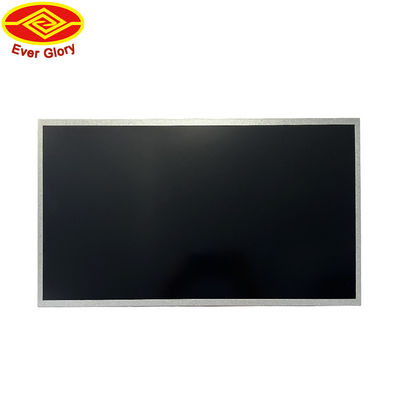

21.5" LCD Panel Touch Screen Anti Glare For Outdoor Entertainment
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | EG |
| Certification: | CE/FCC/ROHS/ISO9001/ISO14001 |
| Model Number: | EG-21.5-A-1609V1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 units |
|---|---|
| Price: | $235.00/units 2-499 units |
| Packaging Details: | Standard Packaging:Wooden box with foam |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Touch Panel P/N: | EG-21.5-A-1609V1 | Display Size: | 21.5 Inch |
|---|---|---|---|
| Contrast Ratio: | 3000 Typ. | Resolution: | 1920(X3)*1080 Pixel |
| Touch Report Rate: | ≥100 Hz | Touch Response Time: | ≤25 Ms |
| Display Supply Voltage: | 5.0 Typ.V | Application: | Outdoor |
| Display Power Consumption: | 15.2 Typ.W | Luminance, White: | 300 Typ. Cd/m2 |
| Color: | Black,White,Transparent,colors Optional | Port: | Guangzhou Port/ Shenzhen Port,China |
| High Light: | 21.5" LCD Panel Touch Screen,LCD Panel Touch Screen Anti Glare |
||
Product Description
21.5 Touch Screen LCD Panel Waterproof Anti-Glare Suitable For Outdoor Entertainmen Surface Strength Grade IK7
| Touch Panel P/N | EG-21.5-A-1609V1 |
| Display P/N | T215HVN01.1 |
| Screen Diagonal | 21.5/16:9 |
| Cover Outline Dimension | 516.64*308.11 mm |
| Touch Panel View Area | 476.64*268.11 mm |
| Touch Panel Active Area | 478.64*269.11 mm |
| Display Outline Dimension | 495.6*292.2 mm |
| Display Active Area | 476.64*268.11 mm |
| Display Thickness | 10.6 mm |
| View angle | 89/89/89/89, Full view angle |
| Impact resistance | ≥IK07 |
| Luminance, white | 250cd/m2 |
| Operation Conditions | 10%-90%RH |
| Touch Response Time | ≤25 ms |
| Pixels H×V | 1920(X3)*1080 |
| Pixel Pitch | 0.1695x0.1695 mm |
| Shape:Standard/Customization | Material:Glass,Film | Optical Bonding |
| Color:Silkprinting,logo | FPC:Shape Design Optional | Air Bonding |
| Glass material:Glass,PMMA | IC:EETI/ILITEK | LCD:LED,OLED,TFT,IPS |
| Treatment:AR/AF/AG/Anti-UV | Interface:12C/USB/RS232 | |
| Thickness:1.1-12mm |
- How can we guarantee quality?
All products must pass 5 times QC inspection with 100% appearance& Function test on each piece.
- Which operating systems does is support?
Our products support Windows,Android,Mac,Linux and Chrome.
- What are the advantages of our products?
High precision,response quickly,good quality control,excellent after-service.
- What is included in your products?
Touch panel+LCD display+Air bonding/Optical bonding+Controller board+USB Cable.(AD borad and display cables are optional)
- Do you support sample testing?
Yes,We can provide standard model in stock or customized sample in 3-7 days for testing purpose.
Want to Know more details about this product
